LIGHT SOURCE

l120W Laser-Based LAMP

lLifespan: over 20,000 hours

POWER SUPPLY

lVoltage: AC 100~240V 50/60Hz

lPower: 200W

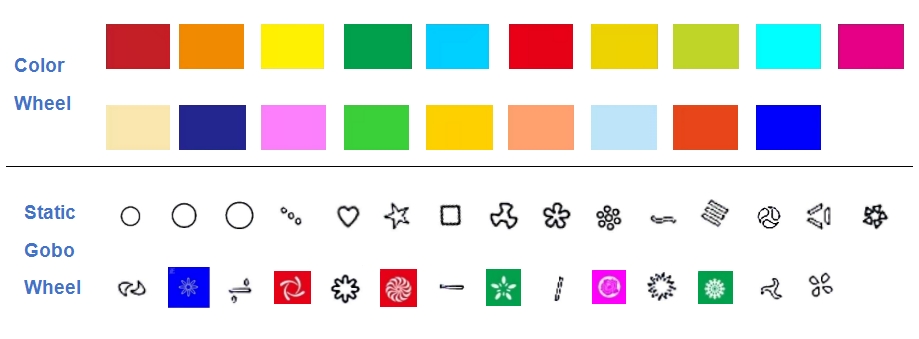

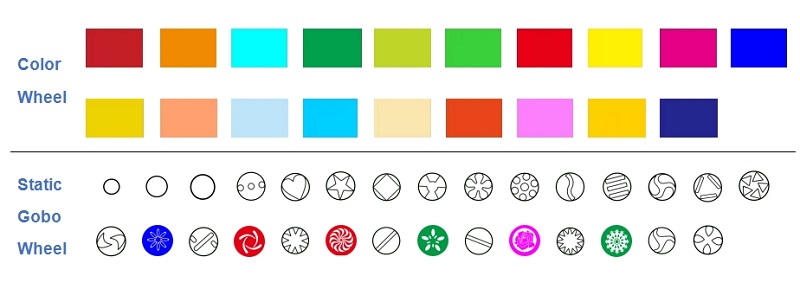

COLOR

lColor: One 19-color wheel + blank, with bidirectional rotation rainbow effect;

lColor temperature: 9000K

GOBO

lStatic Gobo: 29 metal gobos + blank, gobo with shaking effect

EFFECT

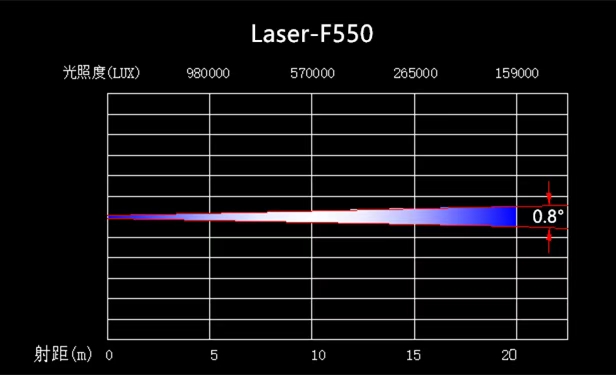

lZoom: electronic beam 1.2°, distance from 2m to infinity;

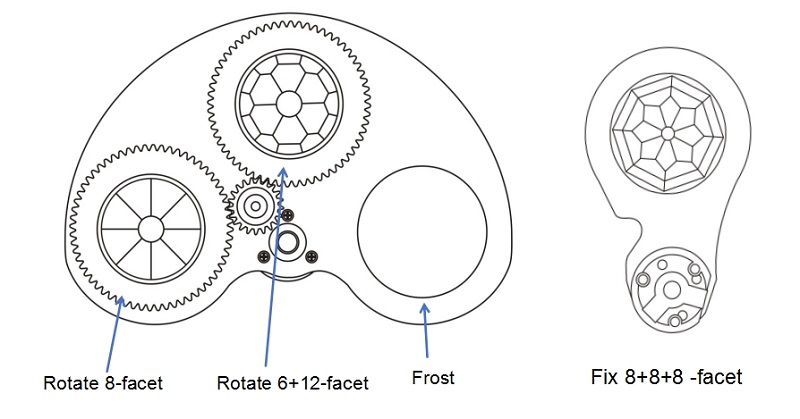

lTwo Prisms: one static 8+8+8-facet prism;

                       one rotating 8-facet prism + 6+12-facet prism + frost;

                       two prisms can combine together;

lDimmer & Strobe: 0-100% linear electronic dimmer, fast electronic strobe

CONTROL & PROGRAMMING

lDisplay: LCD display screen, support both Chinese and English

lDMX Channels: 17CH

lDMX Signal: USITT DMX 512, 3-pin input & output

lControl: Support RDM addressing;

lIntelligent temperature control to ensure LAMP lifespan

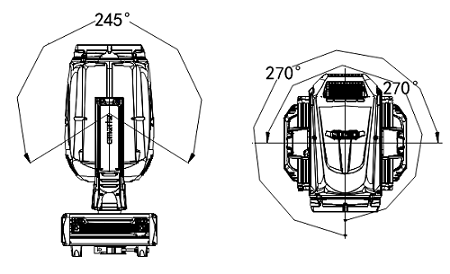

MOVEMENT

lPan: 540° 16 Bit

lTilt: 245° 16 Bit

lAutomatically error correction and reset system

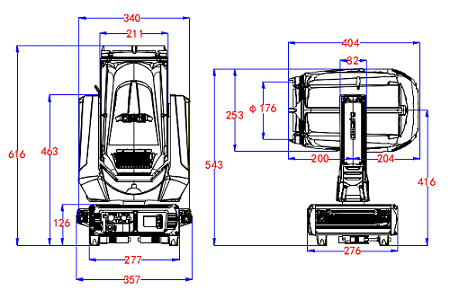

SIZE & WEIGHT

lSize: 359L x 264W x 582H(mm)

lNet weight: 14.80kgs

IP Rating

lIP65
