WATERPROOF LIGHT

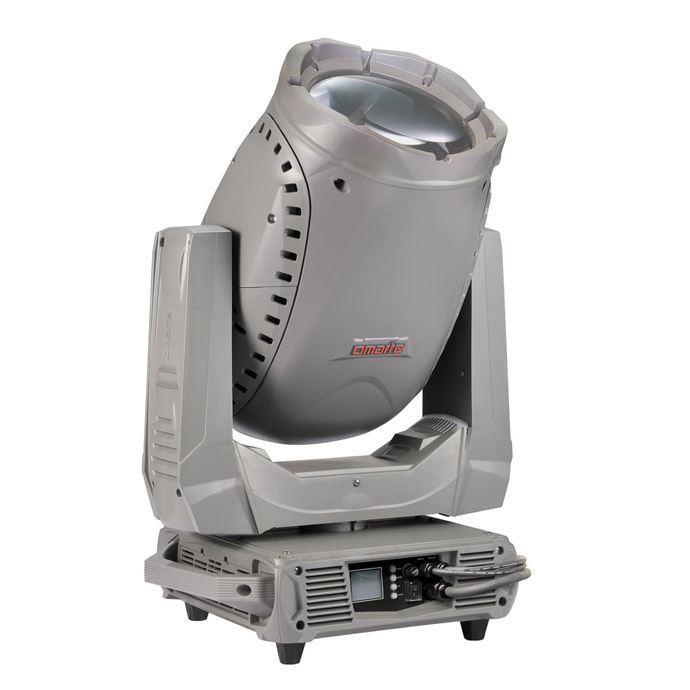

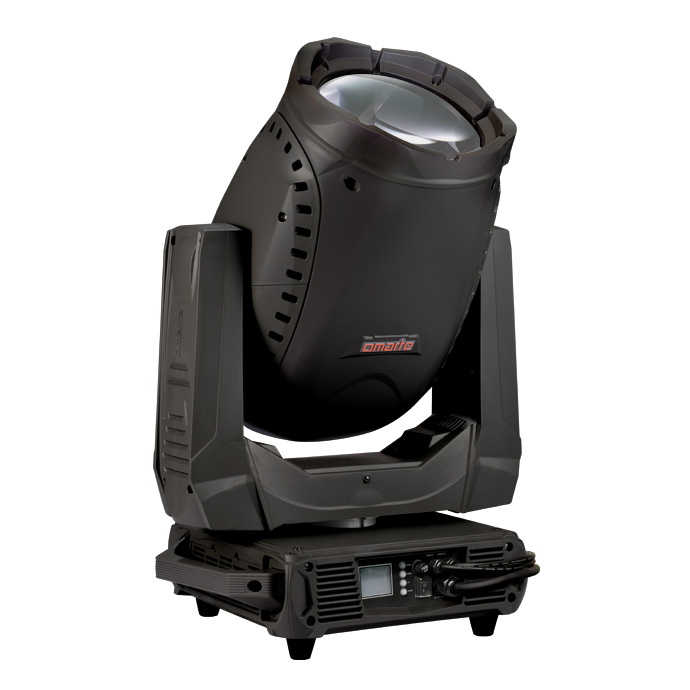

Ares-FS800

Waterproof beam light

All-weather, high light efficiency, Ares-FS800 waterproof light beam lamp scientifically optimizes and upgrades the optical system. The shell made of cast aluminum and high temperature and ultraviolet resistant engineering plastic has a strong and durable design structure, and the protection level can reach IP54.  The light beam is sharp and full, with strong sense of space and penetration. It is suitable for live performance, performing arts and entertainment and other places.


technical parameter

1. Power Supply

>  AC 100~240V 50/60Hz

2. Input Power

>   500W@220V

3. Light source

> type: OSRAM SIRIUS HRI 371w

> average life: 1500 hours

> light source color: 7650K

4. Color System

> 1 color wheel with 14 color pieces+blank

5. Effect

> a fixed pattern wheel with 17 metal patterns+blank

> 2 stackable rotating prism discs, one of which is equipped with 2 prisms

> 1 independent flexible mirror

> stroboscopic: independent stroboscopic, stroboscopic speed 0.5-11HZ, built-in stroboscopic macro function

> dimming: electronic lighting, 0-100% mechanical linear dimming

> electronic linear focusing 1.2, focusing distance from 2 meters to infinity

6. Control and Programming

> standard mode: 20 channels, compact mode: 18 channels.

> DMX protocol signal: USITT DMX 512

Art-Net / RDM

Wireless DMX512

> DMX signal connection: 3-core XLR input and output.

> Pan/Tilt resolution: 16 bit

> Dimmer resolution: 16 bit

7. lamp body structure

> in order to facilitate transportation, both sides of the lamp body have handles.

> for maintenance and transportation, the lamp body is provided with PAN and TILT axial locks

> LCD display, user-friendly interface, language support: Chinese and English

8. Shake head parameters

> angle:
PAN = 540°
TILT = 245°

> in the case of non-control console operation, if the displacement caused by accidental touch, lamps and lanterns can automatically return to the original position

9. Electronic Control Technology

> fan speed control: with intelligent fan speed adaptive function

> LCD screen lamps and lanterns information query

10, waterproof grade

>   IP54

11. Weight

>   18kg
