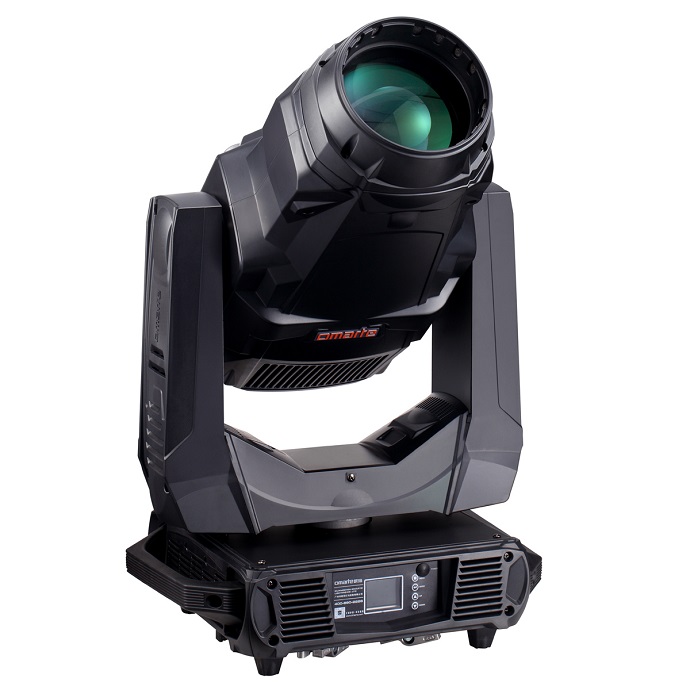

PROFLIE LIGHT
Ares-P7II
LED Proflie light

Type: high-power 680w LED light source, average life: more than 20000 hours, light source color: 6800K K.


technical parameter

1. Power Supply

> AC 100~240V 50/60Hz

2. Input Power

> 800W@220V

3. Light source

> type: high power 680w LED light source

> average life: more than 20000 hours

> light source color: 6800K

4. Color System

> 1 color wheel with 8 color pieces

> CMY infinite color mixing

> CTO color temperature correction (6800K-2800K)

> high index mode surface light mode color rendering index ≥90

5. Effect

> 2 gobo wheel, one of which is a fixed pattern wheel with 6 metal patterns;  The other is a rotary pattern disk with replaceable 7 glass patterns, which has pattern positioning, bidirectional rotation, pattern flowing water and shaking effects.

> 1 rotating 8 prism

> 1 independent flexible prism

> 4-piece full cutting system, cutting disc can rotate 90 degrees

> electronic stroboscopic, 0-100% linear dimming, especially smooth dimming effect

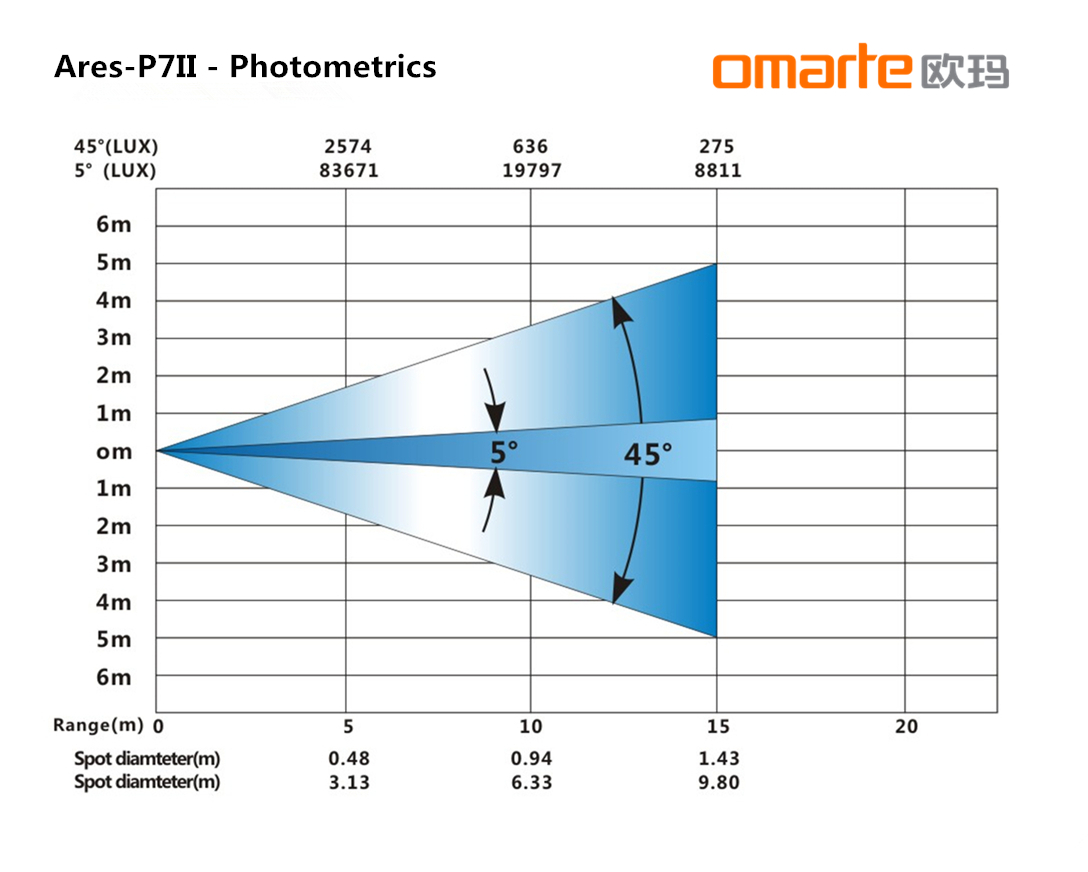

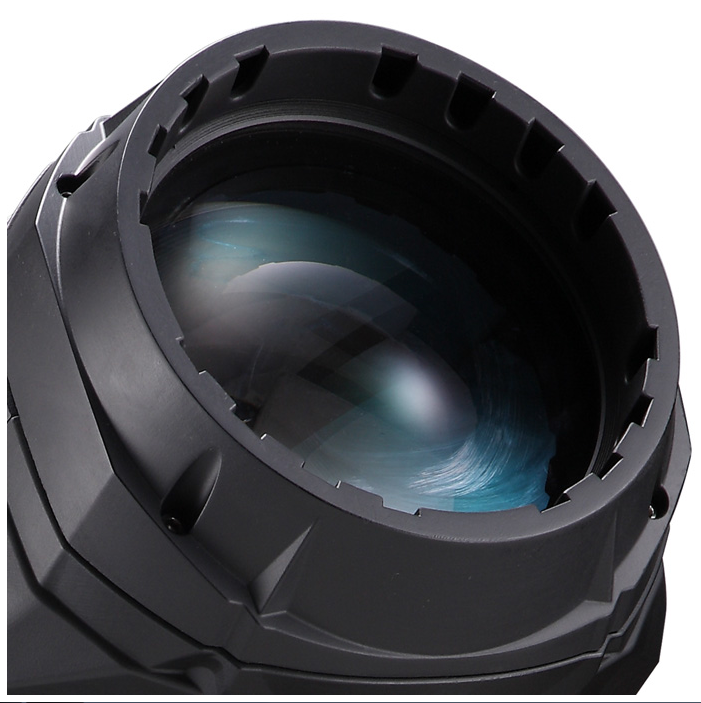

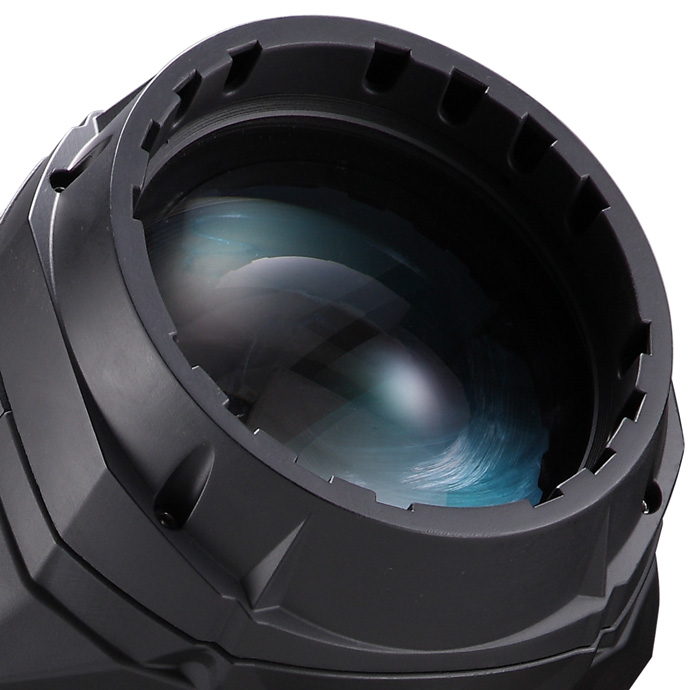

> electronic linear zoom 5-45

6. Control and Programming

> standard mode: 39CH channel, compact mode: 34CH channel

> DMX protocol signal: USITT DMX 512

Art-Net / RDM
Wireless DMX512
> DMX signal connection: 3-core XLR input and output

> Pan/Tilt resolution: 16 bit

> Dimmer resolution: 16 bit

7. lamp body structure

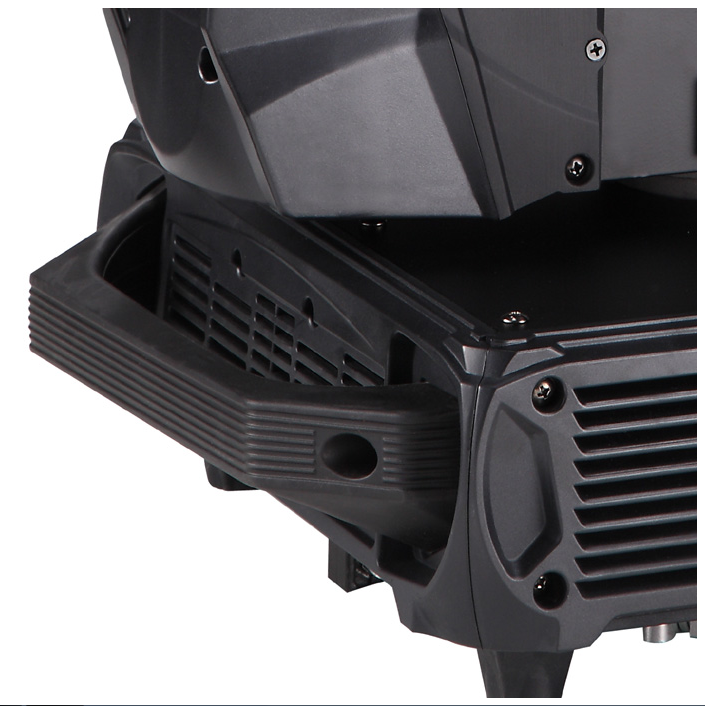

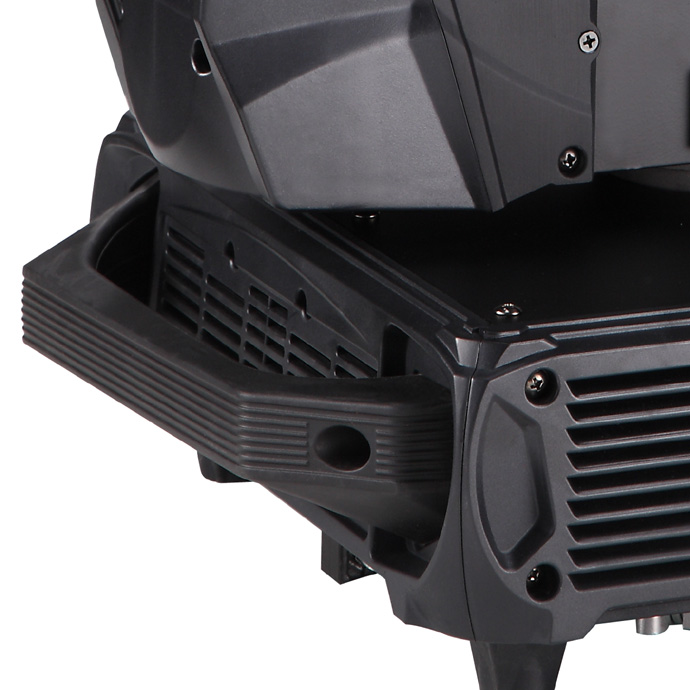

> in order to facilitate transportation, both sides of the lamp body have handles.

> for maintenance and transportation, the lamp body is provided with PAN and TILT axial locks

> LCD display, user-friendly interface, language support: Chinese and English

8. Shake head parameters

> angle:

>  PAN = 540°

> TILT = 245°

> in the case of non-control console operation, if the displacement caused by accidental touch, lamps and lanterns can automatically return to the original position

9. Electronic Control Technology

> fan speed control: with intelligent fan speed adaptive function

> temperature electronic sensing detection.

> LCD screen lamps and lanterns information query

> USB charging dial code

10. Weight

>29kg

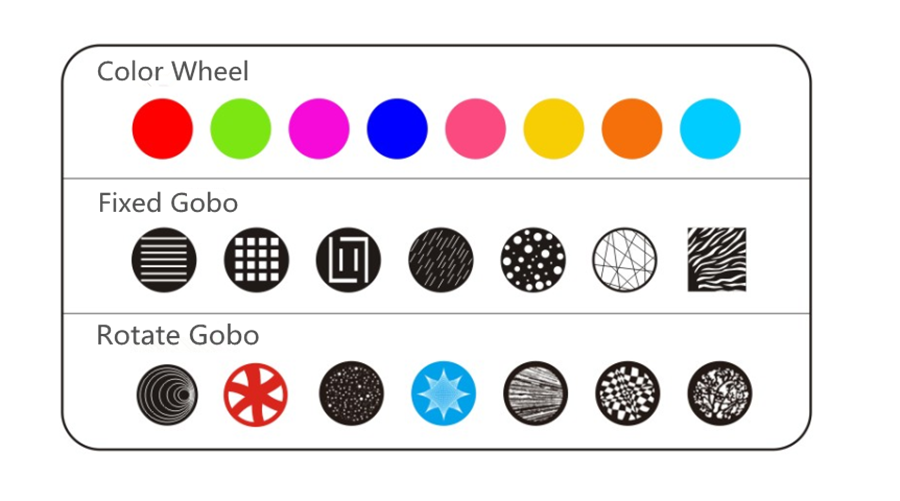

PATTERN & COLOR
